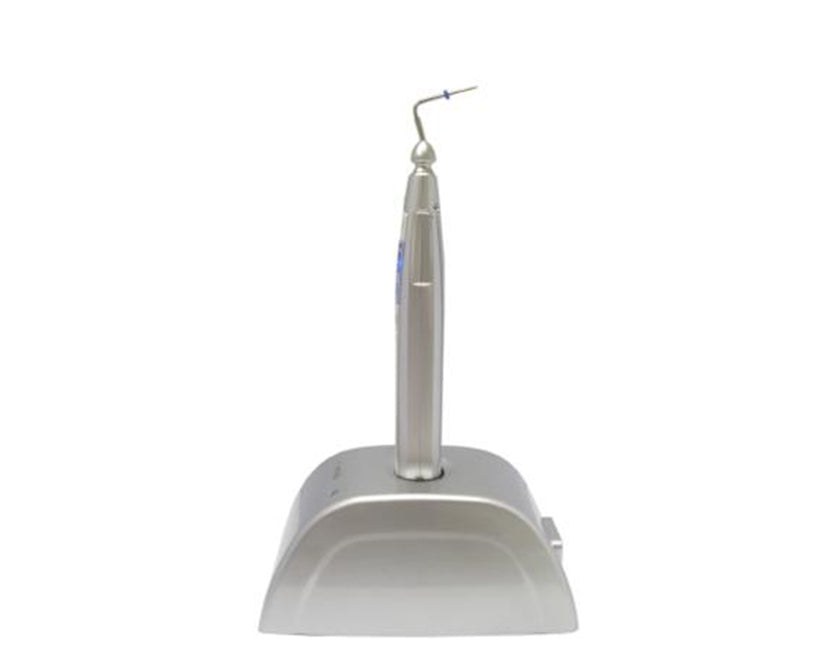

• Side view of Friendo cordless endodontic vertical condensation pen.

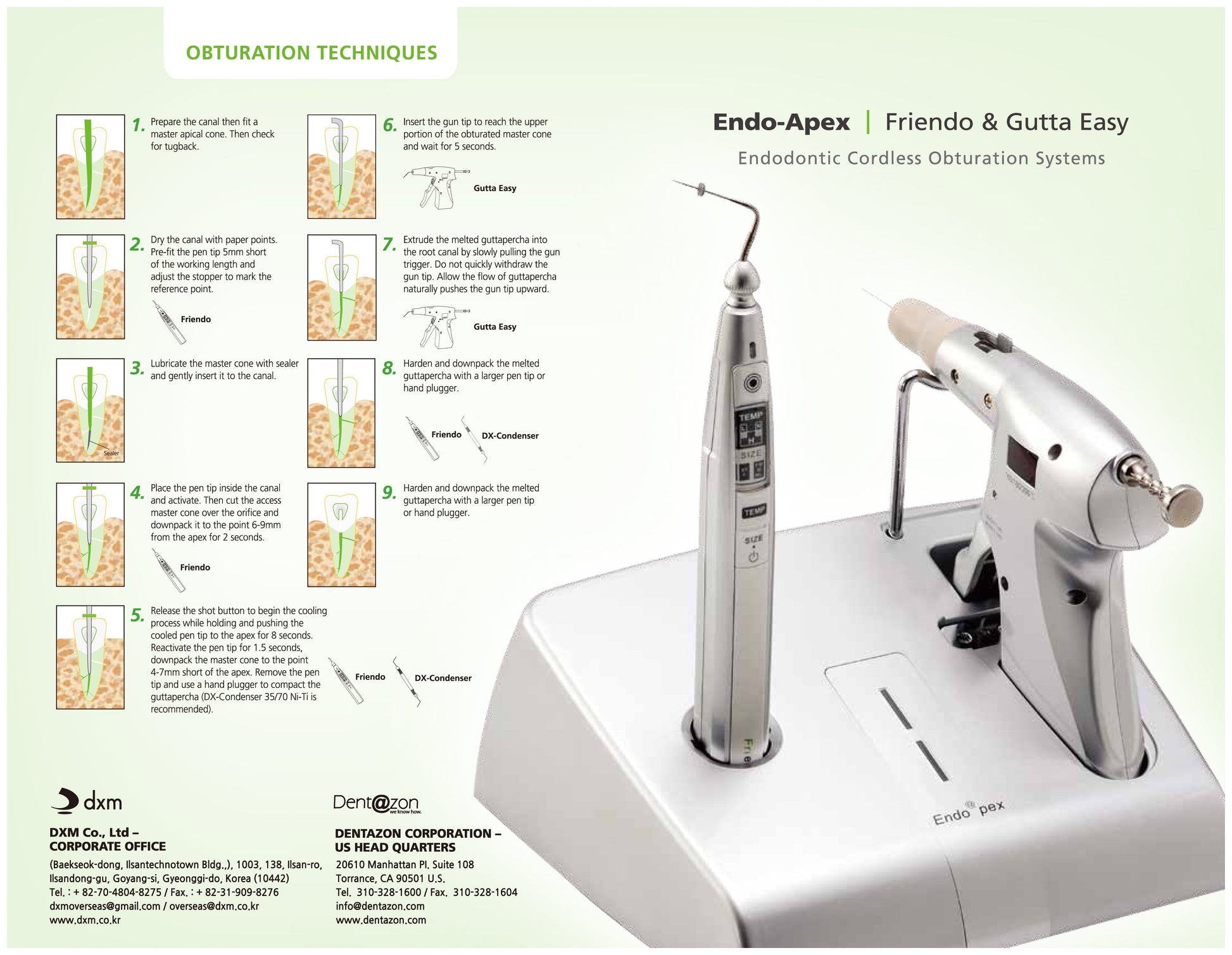

  • Obturation techniques using the Friendo cordless endodontic vertical condensation pen.

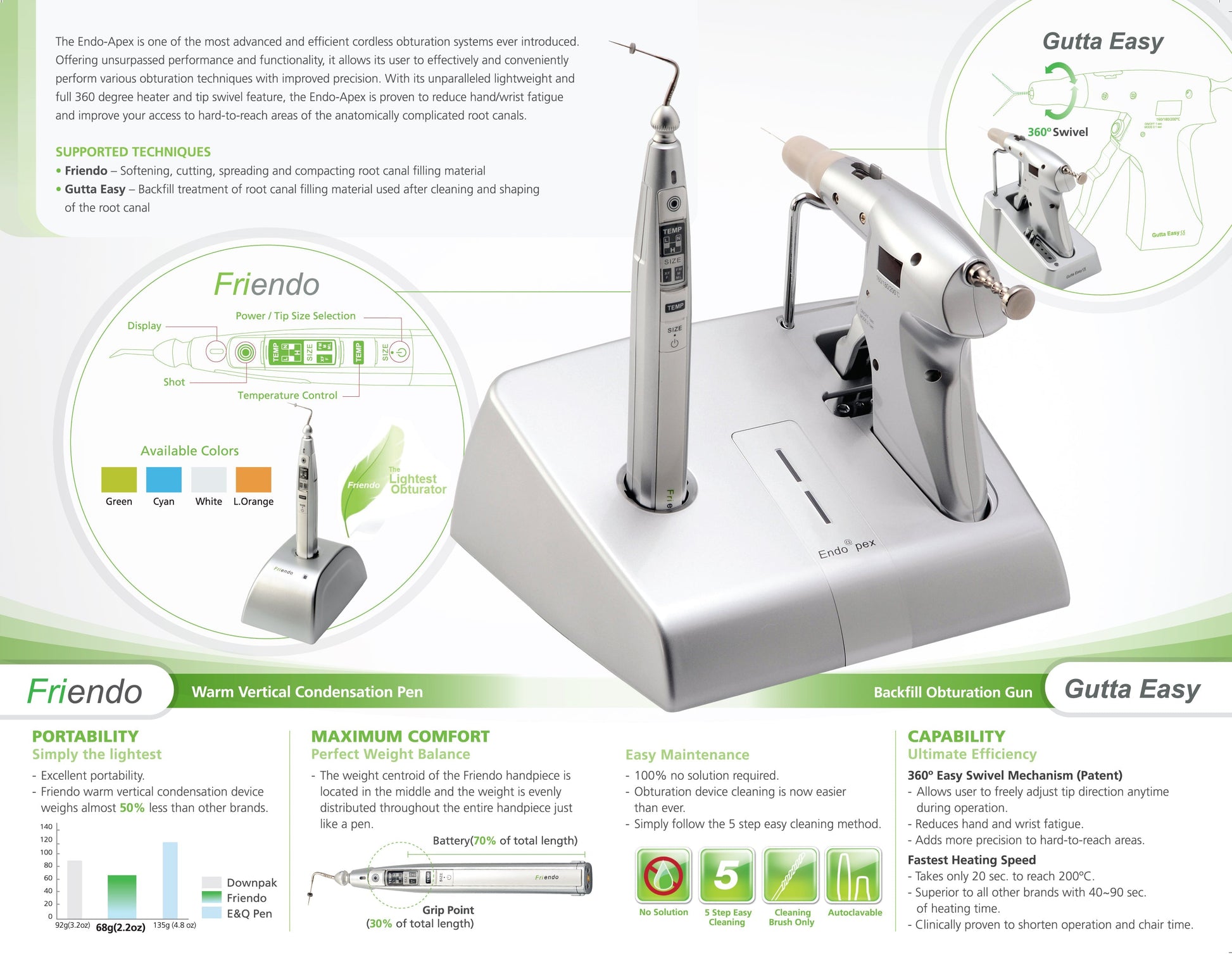

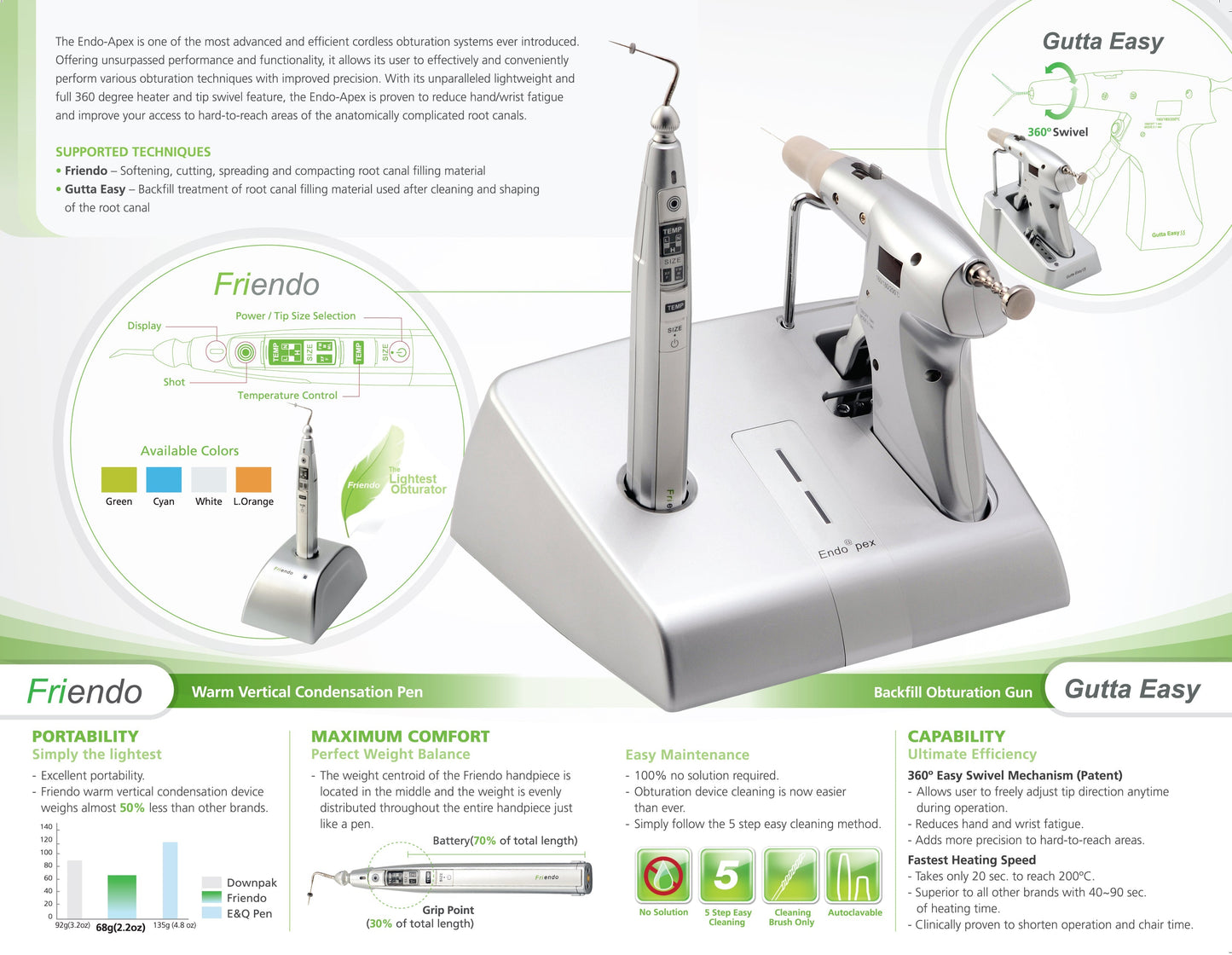

  • Benefits of the Friendo cordless endodontic vertical condensation pen include portability and perfect weight balance.
1 4

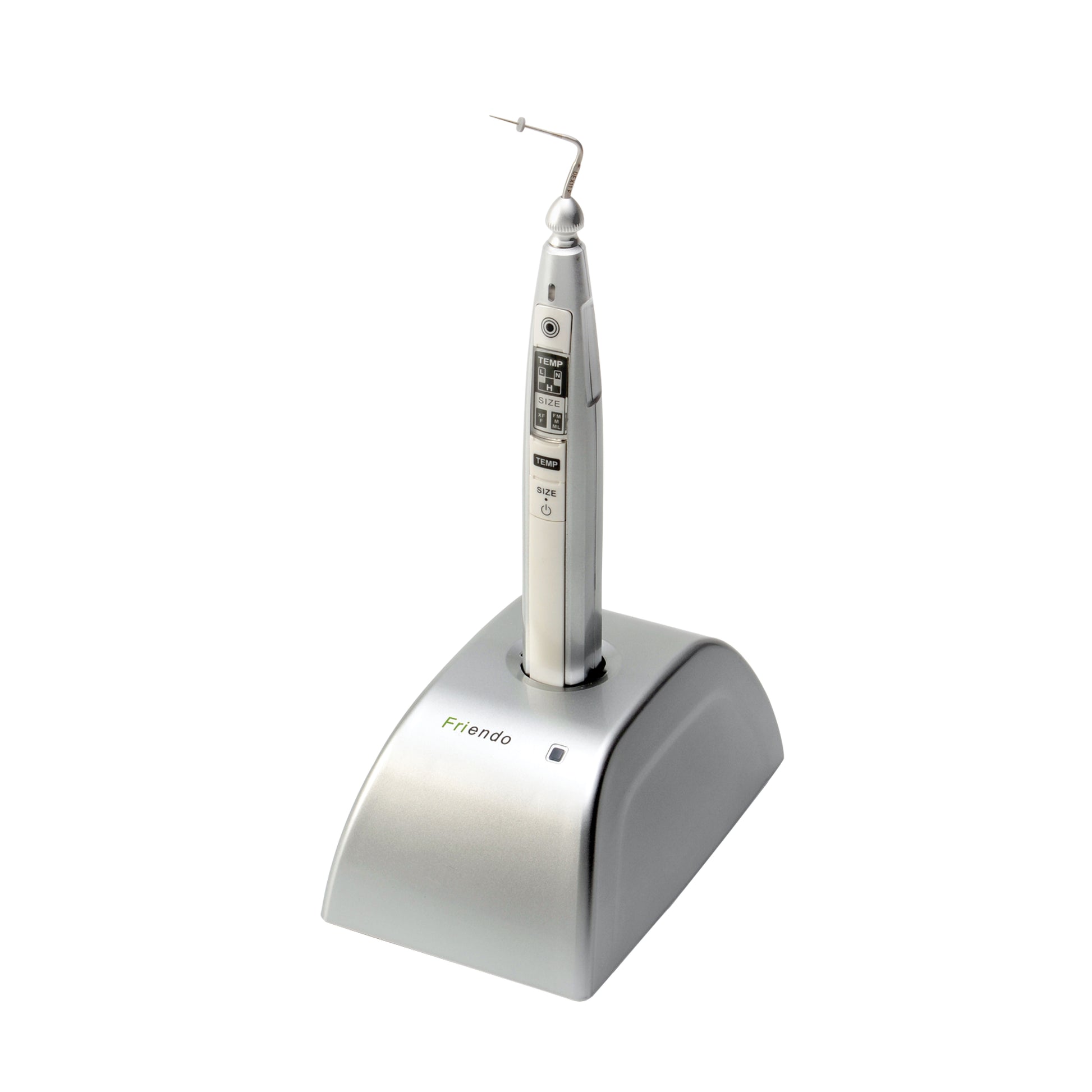

Friendo : Cordless Endodontic Vertical Condensation Pen

Friendo : Cordless Endodontic Vertical Condensation Pen

SKU: EF-1110

  • Lightest cordless warm vertical condensation device reduces fatigue and increases precision
  • Effectively liquefies and condenses root canal filling materials
  • Excellent apical control over lateral and complicated root canals
  • 3 adjustable temperature settings (170 / 200 / 230 °C)
  • Color-coded pen tips available in various sizes (XF, F, FM, M, ML)
View full details

Evaluation of Endo@pex

Visit

Clinical Procedure

Procedure

Video

FAQ

Charger has a burning smell

When different adapter is used, since the voltages are different, it will burn your unit. It is very crucial that you use our adapters for our products only. Please contact us immediately

Battery pins / Charger pins are corroded and will not charge

Pins corrode due to too much sterilization. Any liquid left from sterilization will cause corrosion. Make sure to have the unit dry after sterilization.

Friendo Pen is not turning on

This is the most common complaint that we receive from the customers.

Almost 98% cases are due to lack of charging.

Please keep the unit charged at ALL TIMES for longer battery lifespan.

Why does my Friendo Heating Condensation Pen stop heating after a few seconds?

The heating stops after 3 seconds and activates again after a short pause because we have upgraded our software to prevent any burns with longer heating cycle during the treatment for patient safety.

My Gutta Easy obturation gun shows “Er1”. What does this mean?

“Er1” shows on LED display when the heater is in a bad contact with the PCB inside.

Try turning the heater around and if it still doesn’t work, please request for an inspection.

My Gutta Easy obturation gun does not turn on. What should I do?

If the gun was not charged, charge it, and try turning it on again.


Also, try the reset button on the bottom of the handpiece. Press the square button. Once pressed, it will click in. Leave it for few seconds and press it again. Unit will turn on. If it still doesn’t turn on, please request for an inspection.

Gutta percha pellet is stuck in my Gutta Easy obturation gun and does not work

Please request for an inspection. Our repair department would have to disassemble the unit and remove the pellet inside.


To prevent this from happening, please use 1 pellet at a time. Do not use 2. Once the pellet is inserted, insert the plunger pushing towards the mouth of the handpiece.


Also, make sure the plunger has the white o-ring (Teflon ring) in place.
